6430033091449
numero de articulo: MP-SBM
product id: 59189

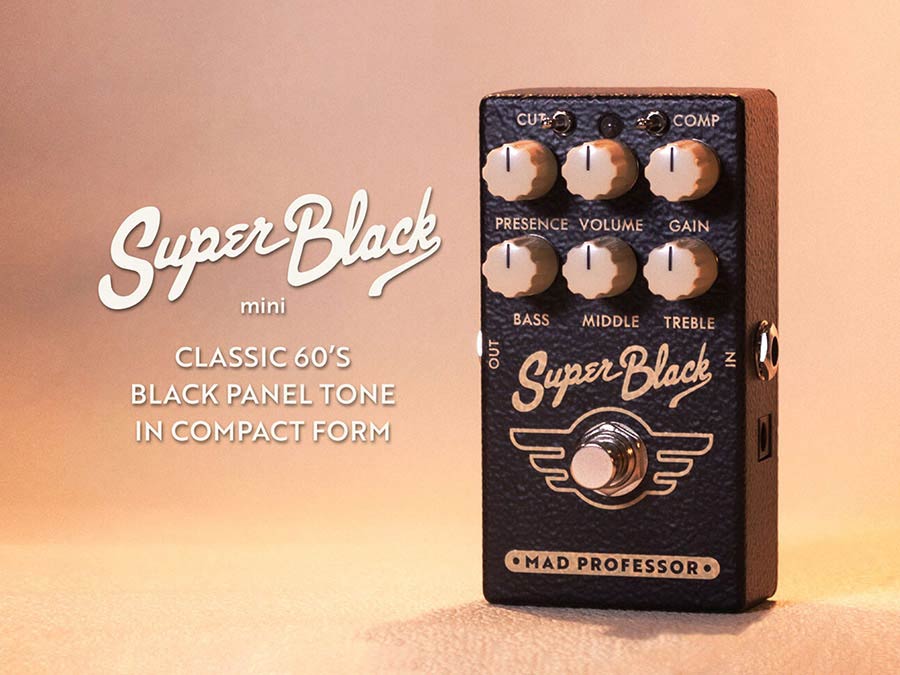

effect pedal Super Black Mini preamp/overdrive
The Super Black Mini delivers the classic 60’s Black Panel amp sound in a compact pedal format. Its fully analog circuitry recreates the complete signal path of the original amplifier, capturing the signature sparkle, punch, and dynamic response that made those amps legendary.
Thanks to the pedal’s increased headroom, you can achieve the bright, articulate clean tones associated with classic Black Panel amplifiers. At the same time, the Super Black Mini allows you to dial in rich amp breakup without needing excessive volume, preserving the natural feel and dynamics of a cranked tube amp.
The pedal works equally well as a tone-shaping boost in front of an amplifier, or as a standalone preamp when connected to an FX loop return, power amp, or cabinet IR setup.

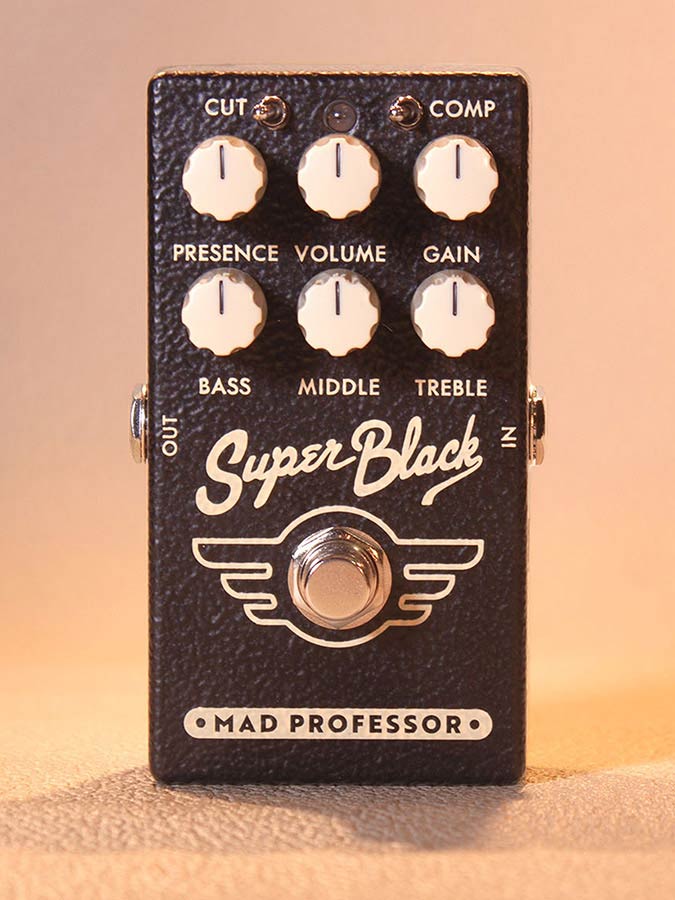

Controls
-Presence: Adjusts the amount of high frequencies at the pedal’s output stage.
-Volume: Sets the overall output level.
-Gain: Controls the amount of distortion.
-Bass: Adjusts the level of low frequencies.
-Middle: Adjusts the amount of mid frequencies in the preamp section.
-Treble: Adjusts the amount of high frequencies in the preamp section.
-Cut: Full bass level on the left, slightly reduced low bass on the right.
-Comp: Less compression with maximum dynamics on the left, more compression on the right.
Note: Like on a vintage amplifier, the treble control does not affect the sound when the gain is set to zero.
Specifications
| current draw | approx. 27 ma at 9 vdc |
| input impedance | 400 k |
| output impedance | 1.5 k |
| voltage supply range | 8–18 v |
| bypass | true bypass |
| caution | never operate the unit with its bottom removed or damage may occur |
| dc supply | 6f22 9v battery or 2.1 mm dc plug, center negative |
| polarity protection | protected against wrong dc polarity |
| recommended voltage | use recommended voltage for best results |
