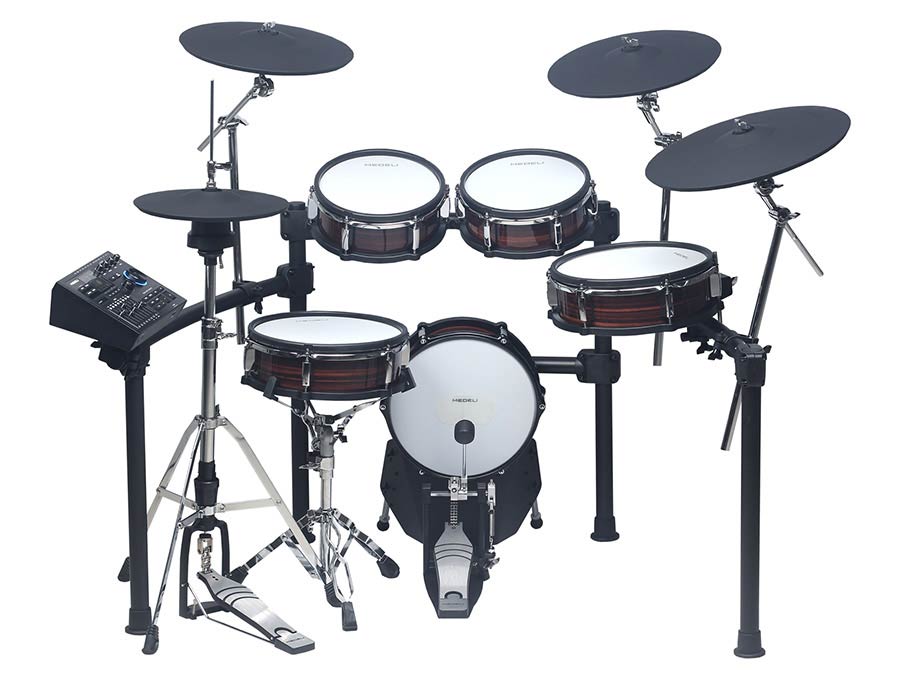

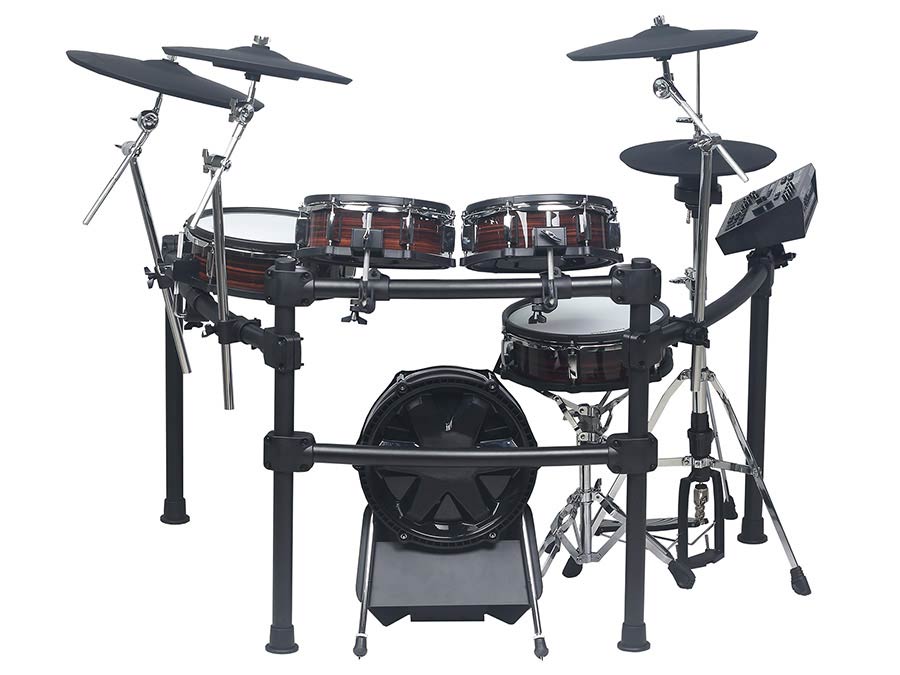

| HARDWARE | |

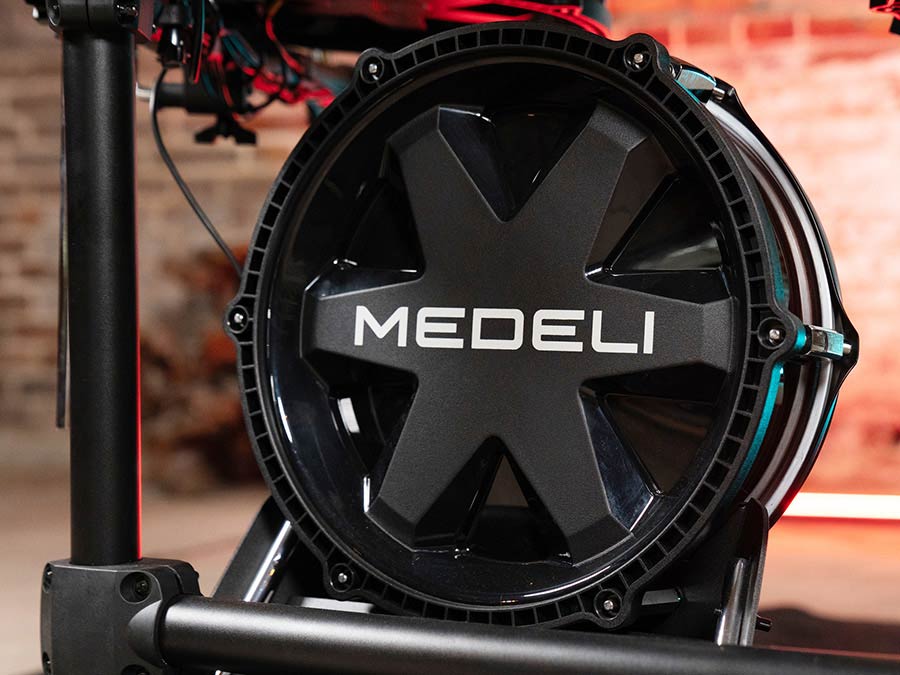

| kick | 12" mesh head |

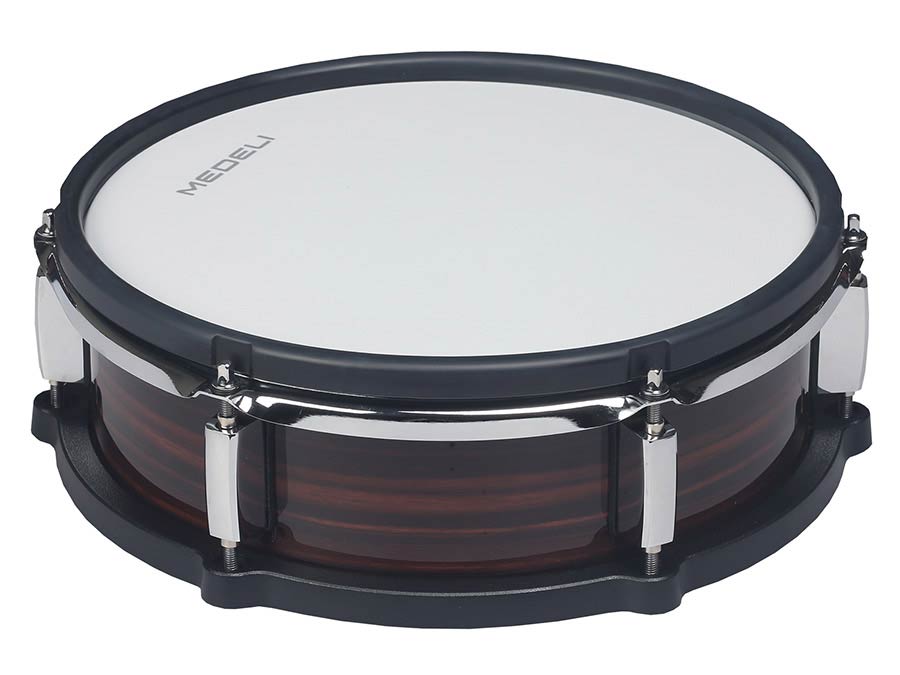

| snare | 12" mesh head (2-zone, position sensing) |

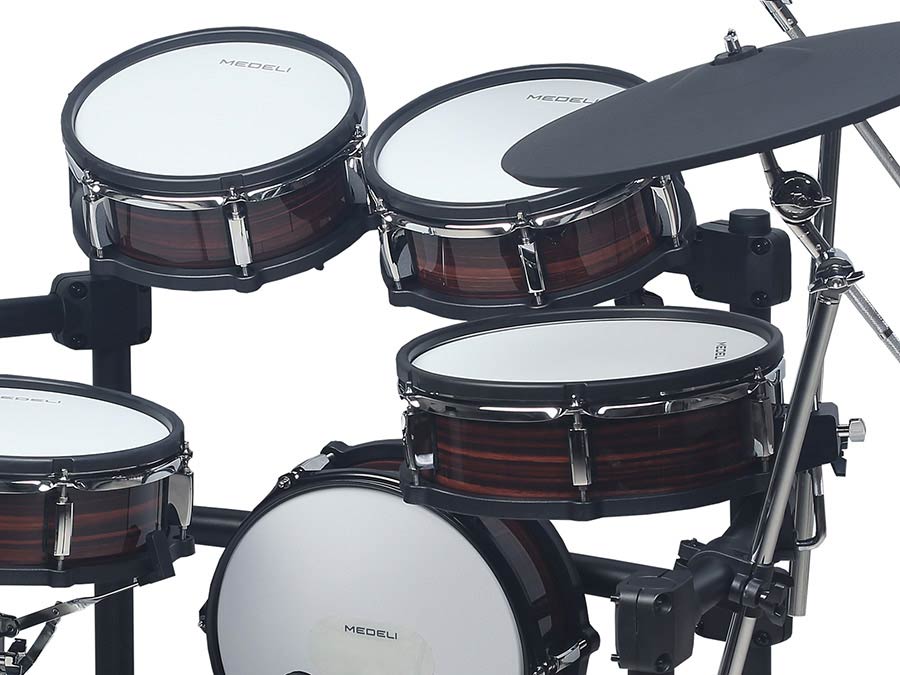

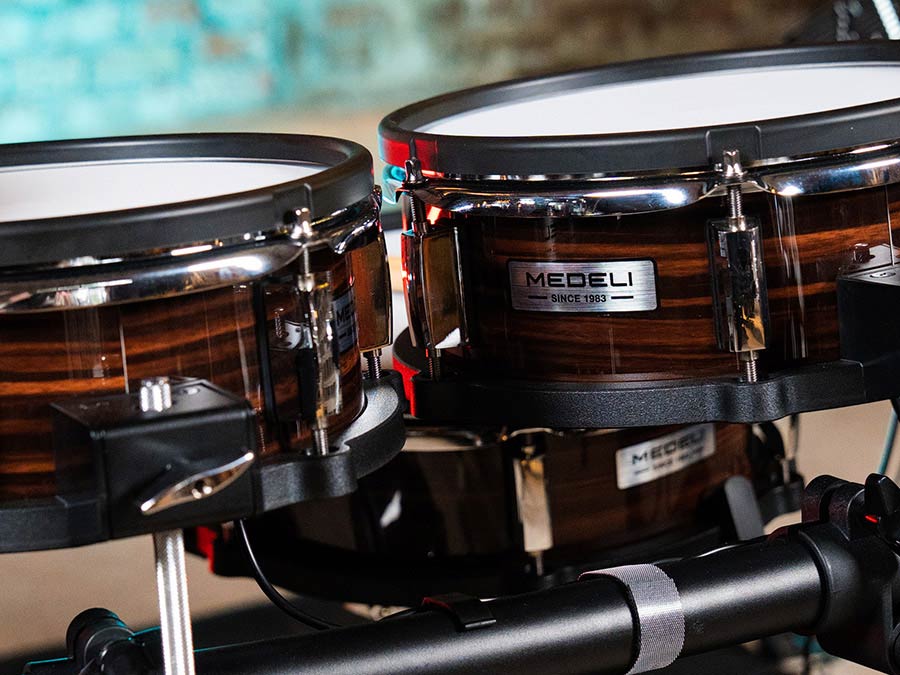

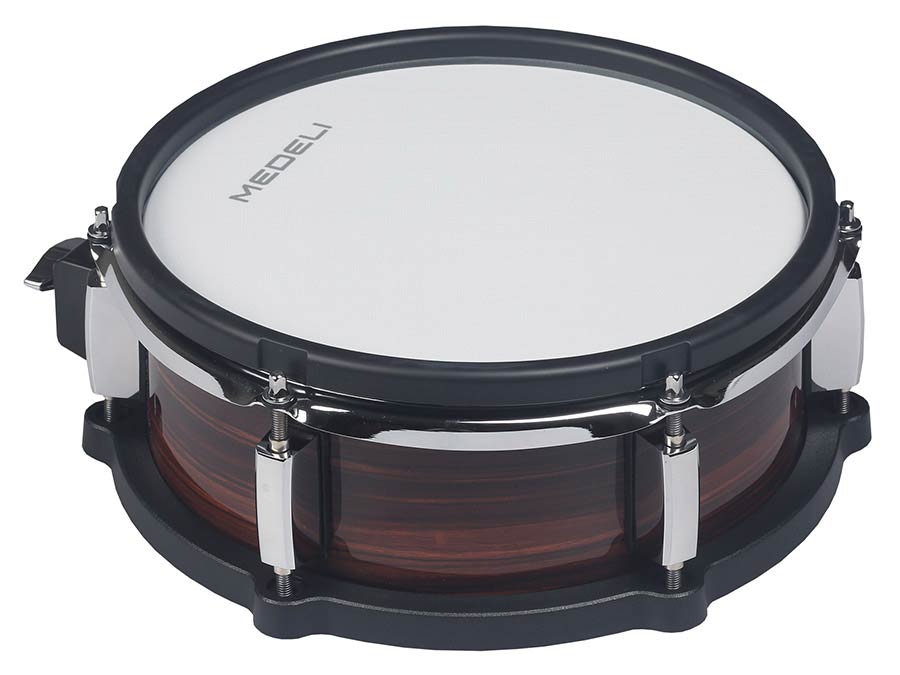

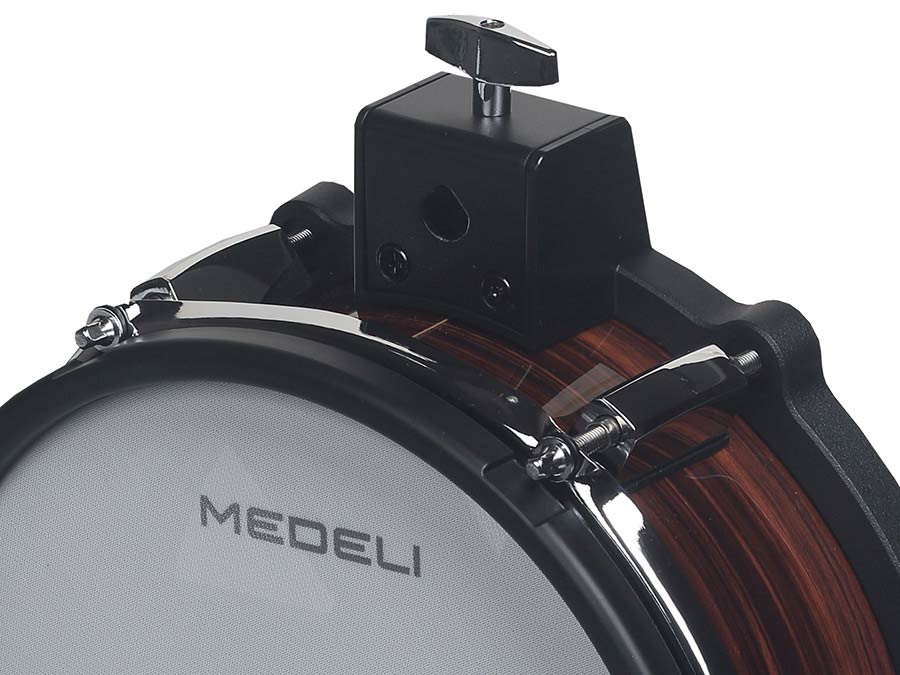

| tom | 2 x 10" mesh head (2-zone) 12" mesh head (2-zone) |
| hi-hat | 12" (2-zone) |
| hh pedal | real hi-hat |
| crash | 2 x 14" (2-zone with choke) |
| ride | 16" (3-zone with choke) |
| expandability | tom4 • ext1 • ext2 |

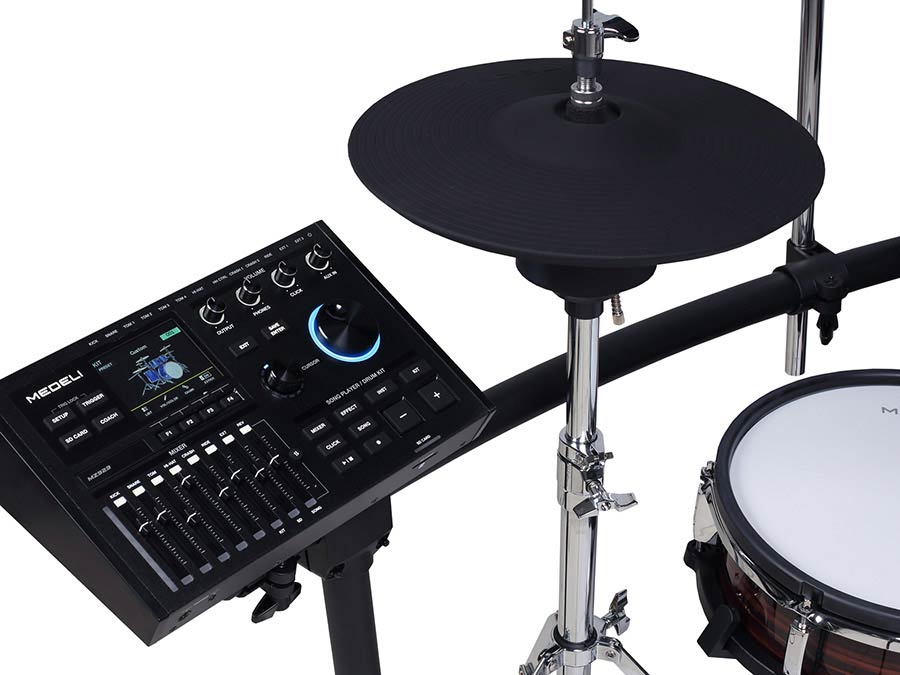

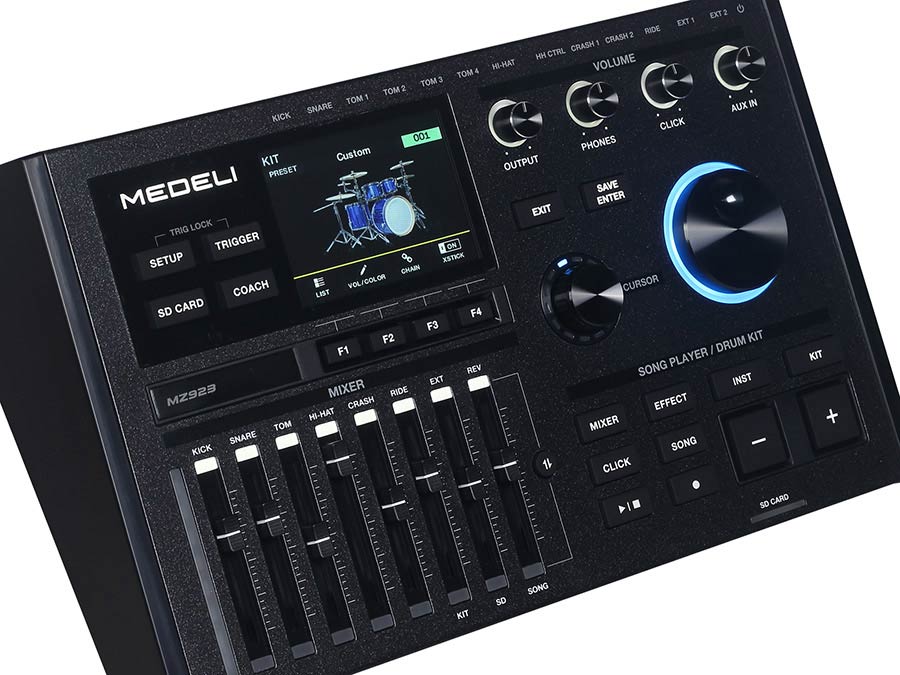

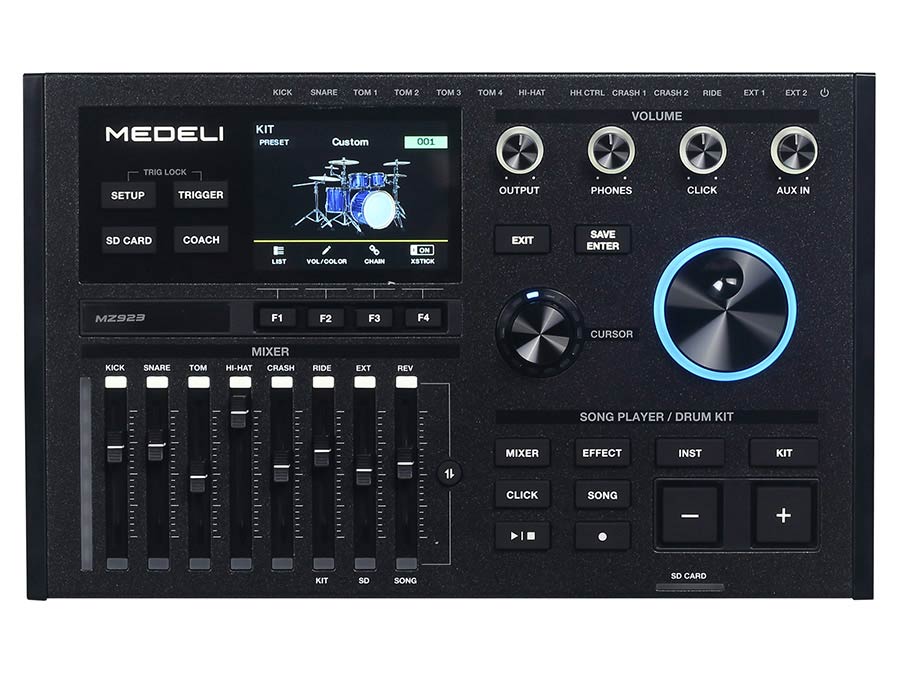

| MODULE | |
| display | 3.5" 320 x 240 tft |
| max polyphony | 256 |
| drum kit | 55 preset + 45 user |
| sound / voice | 917, 82 users max. (128mb) |
| song | 108 midi + 20 audio |
| effect | kit: reverb, eq, compressor, ifx trigger: compressor, eq, reverb |
| record | midi (2 user) • audio (wav, 97 songs max.) |
| audio playback | wav • mp3 |
| coach | quiet count • beat check • change up |
| metronome | click voice • volume • time signature • interval select |
| tempo | 30-280 |
| volume control | 4 x knobs • 8 x sliders |
| external memory | sd card (64gb max.) |
| trigger para | sensitivity • threshold • h/r adjust • xstick point curve • retrig cancel • splash sensitivity • hh close point • scan time |

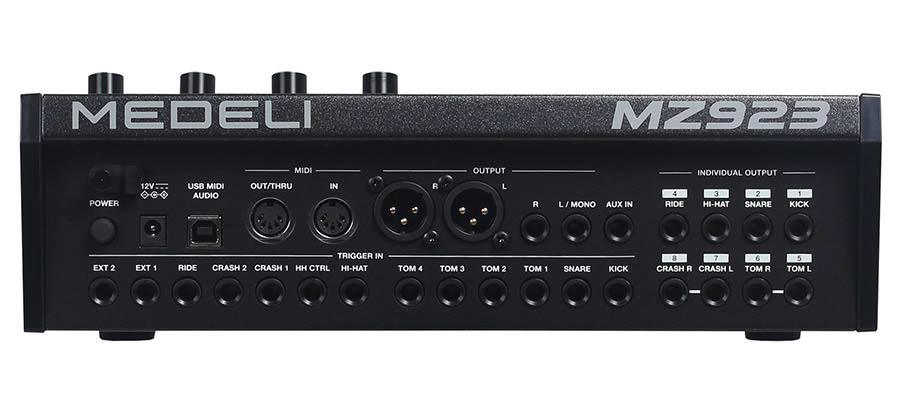

| CONNECTIONS | |
| bluetooth | midi & audio |
| usb | 1 x usb-b (midi & audio) |
| midi | midi in / out |
| headphone jack | 1/8" + 1/4" jacks |
| aux-in jack | 1/4" + 1/8" jack |
| output jack | 1/4" mono jack x 2 + xlr type x 2 + 8 x direct out |
| OTHER | |
| power | dc12v |
| dimensions | 1500 x 910 x 1150 mm |
| weight | 49.5 kg |
